AL100 Platform Scooter Lift by Harmar
The Harmar AL100 is a scooter specific vehicle lift. This lift has been one of our most popular scooter lifts due to its functionality, quality features, and durability. It is also popular due its ability to be compatible with a very wide range of vehicles as well as styles and sizes of scooters.
This unit will work with both Class II and Class III hitches. The Class III hitch is standard for the AL100 and the Class II option will require an additional cost upgraded hitch adapter. A hold-down arm secures your scooter to the lift. The AL100 has a 350 lbs. weight capacity and can accommodate most wheel bases.
WHAT MAKES THIS A GREAT LIFT:
The Harmar AL100 is a versatile and adaptable scooter lift that can handle a wide range of mobility scooter sizes. It can accommodate travel scooters, full-size scooters, and smaller heavy-duty models, making it a popular choice for those with different types of scooters. The flat, full-size deck can work with both 3-wheel and 4-wheel models, and the one-switch operation and automatic hold-down arm make securement effortless.

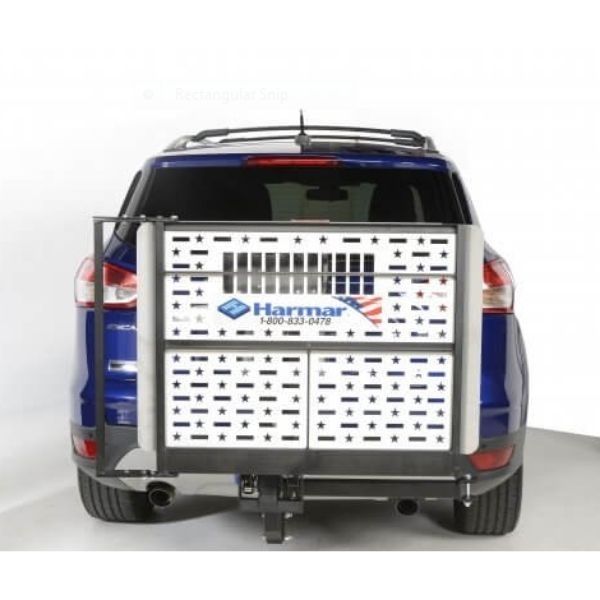

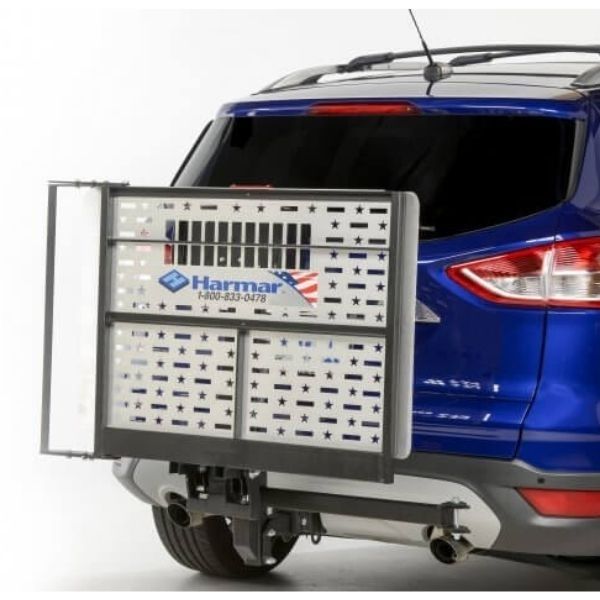

The lift is highly adaptable and securely holds your scooter for easy transport. It has a large aluminum deck that folds up against the back of your vehicle when not in use, making it easy to store your vehicle in your garage. Additionally, the Swing-Away option allows for easy access to the trunk or lift gate of any vehicle that can support a Class III hitch. The AL100 is easy to install, and no modifications are required to transport your scooter. It can accommodate small travel scooters to full-size scooters with wheelbases up to 42".
Note: It is important to note that in several states, including CA, AZ, NV, CO, UT, ND, SD, OR, WA, ID, MT, WY, HI, AK, FL, TX, and AL, it is required by law to display your license plate on the outside of your lift. Other states may have similar regulations, and it is your responsibility to understand and comply with the rules in your state.
AL100 Platform Scooter Lift Benefits & Features:
- Sets the standard for all other Scooter Lifts

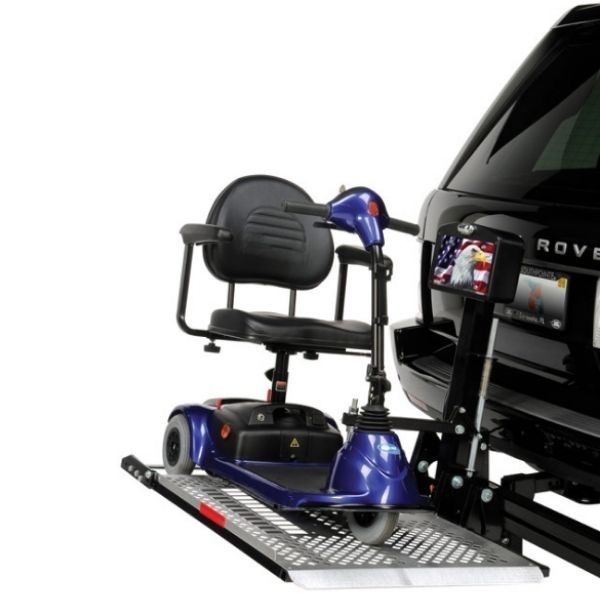

- Carries virtually all scooters
- Automatic hold down arm
- No scooter modifications
- Accommodates scooters with a wheelbase of up to 42”
- Manual crank backup and license plate mount included
- Swing-away option available
- Made in the USA
Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.
| Hitch Height: |
5" to 18" |
| Power Source: |
Hardwired |
| Works With Hitch Size: |
Class II Hitch Class III Hitch |
| Professional Install Available: |
Yes |
| Service Contract Available |
No |
| Operation: |
Power |
| Lifting Capacity: |
350 lbs. |
| Boom Weight |
18.00"
|
| Recommended For |
Travel Scooters Full Sized Scooters |
| Platform Size - Length: |
39-47 in. |
| Platform Size - Width: |
27.5 in. |
| Installed Product Weight: |
83 lbs. |
| Length of Boom Arm: |
35" |
| Type of Lift: |
Outside Lift |
| Warranty: |
3 Year Limited Warranty |
| Warranty - Transferable Warranty |
Yes |
| Product Weight |
83 lbs. |
| Box 1 |
|
| Shipping Weight |
155.00 lbs. |
| Length |
42.00" |
| Width |
41.00" |
| Height |
13.00" |
Warranty Information for the AL100 Platform Scooter Lift
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
