Harmar AL225 Axis II Lite

✓ Ships in 1-3 Business Days
✓ Warranty Included

AL225 Axis II Lite by Harmar

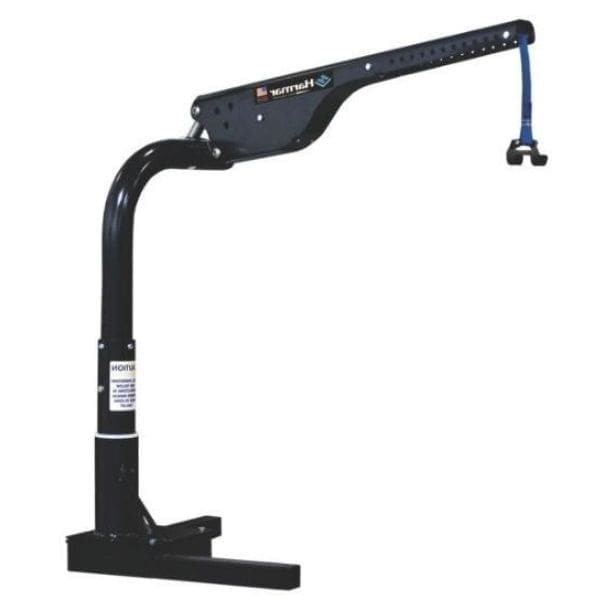

Harmar AL225 Axis II Lite Side View


Harmar's AL225 Axis II Lite boom lift is a fully powered and adjustable mobility aid transport system that includes interchangeable sub bases to fit every vehicle. Its curved offset post enables the unit to be delivered to either the driver's or passenger's side of the vehicle. Despite being affordable, it's a highly convenient and easy-to-use lift that enables users to easily load and unload their mobility aids.

However, it should be noted that units that bolt to the floor or are wired to the vehicle's battery, like this one, may pose installation challenges for those who are not mechanically inclined. Additionally, the AL225 is not suitable for vehicles with power hatches and may require an adapter kit for Stow and Go seating in vans or SUVs.

The hard wire installation, which involves directly connecting the lift to the vehicle battery, is a professional installation. The installation includes the hard wire harness and is performed by a Certified Installer at no additional cost.


AL225 Axis II Lite Benefits & Features:

  • Weather resistant control with optional wireless remote
  • Adjustable post height and strap
  • Turn buckle for easy pitch adjustment
  • Lifts most scooters and lighter power chairs


Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.




Adjustable Boom Height: 30" to 41"
Adjustable Boom Length: 21.25" to 32.25"
Power Source: Battery
Professional Install Available No
Service Contract Available: No
Operation: Power
Lifting Capacity: 250 lbs
Recommended For: Travel Scooters Full-Size Power Wheelchairs
Installed Product Weight: 82 lbs.
Type of Lift: Inside Lift
Warranty: 3 Year Limited Warranty
Warranty - Transferable Warranty Yes
Product Weight 82 lbs.
Box 1
Shipping Weight: 90.00 lbs.


Warranty Information for the AL225 Axis II Lite


Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.

This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
