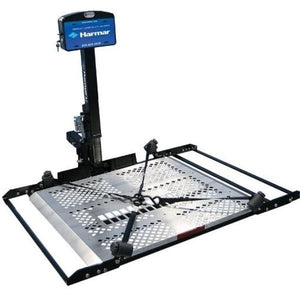

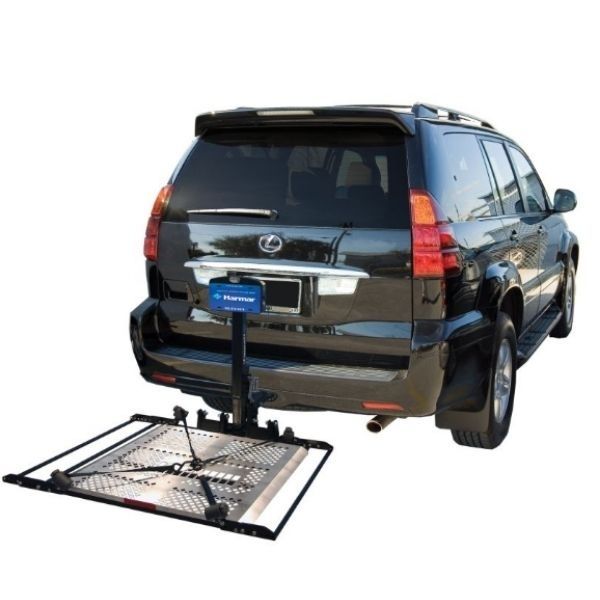

AL301XL Fusion Power Chair and Scooter Lift by Harmar
The AL301XL by Harmar is a robust and fully powered lift that can effortlessly lower and raise your large mobility aid with just one switch. Its sturdy build and large aluminum deck make it compatible with most large power wheelchairs and mobility scooters. The lift also features self-tensioning retractors that enable you to secure your mobility device without any drilling or modification. The AL301XL is capable of supporting a wheelbase of up to 48 inches, making it a perfect choice for transporting larger power wheelchairs and mobility scooters.
Note that displaying your license plate on the outside of your lift may be required by many states, including CA, AZ, NV, CO, UT, ND, SD, OR, WA, ID, MT, WY, HI, AK, FL, TX, and AL. You should also be aware that it may be required in other states and it is your responsibility to know and follow your state's regulations.
AL301XL Benefits & Features:
-
Carries larger power scooters or power chairs with no modifications required.
-
Self-tensioning, Q'Straint retractors/front and rear cradles
-
Extra large 36" x39" aluminum deck/adjustable cradles extend up to 53" (optional, no charge item)
-
Manual crank backup and license plate mount included
-
Swing-Away option available
-
Class III hitch adapter standard (AL123X); drop adapter upgrades available.
-
Made in USA
Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.
| Hitch Height: |
5" to 19" |
| Power Source: |
Battery Hardwired |
| Works With Hitch Size: |
Class III Hitch |
| Professional Install Available: |
No |
| Service Contract Available: |
No |
| Operation: |
Power |
| Lifting Capacity: |
350 lbs |
| Recommended For: |
Travel Scooters Full Sized Scooters Full-Size Power Wheelchairs |
| Platform Size - Length: |
39-53 in. |
| Platform Size - Width: |
36 in. |
| Installed Product Weight: |
100 lbs. |
| Type of Lift: |
Outside Lift |
| Warranty: |
3 Year Limited Warranty |
| Warranty - Transferable Warranty: |
Yes |
| Product Weight: |
124 lbs. |
| Box 1 |
|
| Shipping Weight: |
180.00 lbs. |
| Length: |
42.00" |
| Width: |
41.00" |
| Height: |
13.00" |
Warranty Information for the AL301XL Fusion Power Chair and Scooter
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
