Harmar AL301XLHD Heavy Duty Fusion Power Chair and Scooter

✓ Ships in 1-3 Business Days
✓ Warranty Included

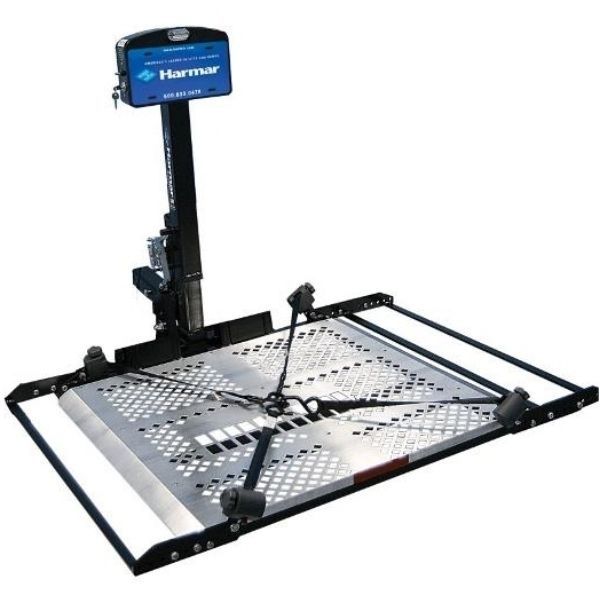

AL301XLHD Heavy Duty Fusion Power Chair and Scooter by Harmar


Harmar AL301XLHD Front View



The Harmar AL301XLHD is a heavy duty lift capable of supporting 400 lbs.  It is fully powered and lowers and raises with the flip of a switch.  This lift will work with larger mobility scooters and power wheelchairs because its oversize deck that is made of aluminum.  It also comes with self-tensioning retractors which attach to your mobility scooter or power wheelchair with no need to drill or make modifications.  This makes it convenient and simple to secure your mobility aid to the lift. The AL301XLHD is a great choice for larger mobility scooters and power chairs and can support a unit with a wheelbase up to 48”.

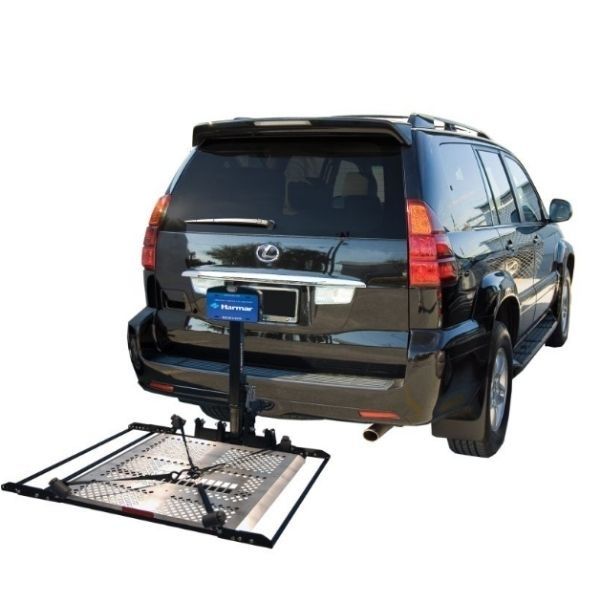

Harmar AL301XLHD Back of Vehicle View


Please be aware many states require you to display your license plate on the outside of your lift. It may be required in the following states: CA, AZ, NV, CO, UT, ND, SD, OR, WA, ID, MT, WY, HI, AK, FL, TX, & AL. It might be required in other states as well and it’s your responsibility to understand your state’s regulations.

AL301XLHD Heavy Duty Benefits & Features:

  • Carries larger power scooters or power chairs with no modifications required.

  • Self-tensioning, Q'Straint retractors/front and rear cradles

  • Extra large 36" x39" aluminum deck/adjustable cradles extend up to 53" (optional, no charge item)

  • Manual crank backup and license plate mount included

  • Swing-Away option available

  • Class III hitch adapter standard (AL123X); drop adapter upgrades available.

  • Made in USA

Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.




Hitch Height: 5" to 18"
Power Source: Battery Hardwired
Works With Hitch Size: Class III Hitch
Professional Install Available: No
Service Contract Available: No
Operation: Power
Lifting Capacity: 400 lbs.
Recommended For Travel Scooters Full Sized Scooters Full-Size Power Wheelchairs
Platform Size - Length: 39-53 in.
Platform Size - Width: 36 in.
Installed Product Weight: 102 lbs.
Warranty: 3 Year Limited Warranty
Warranty - Transferable Warranty: Yes
Product Weight: 125 lbs.


Warranty Information for the AL301XLHD Heavy Duty Fusion Power Chair and Scooter


Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.

This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
