Harmar AL425HD Axis II

✓ Ships in 1-3 Business Days
✓ Warranty Included

AL425HD Axis II by Harmar

The AL425HD Axis II Inside Vehicle Lift is an ideal heavy-duty lifting solution for full-size vans or pickup trucks, capable of lifting fully equipped power wheelchairs weighing up to 450 lbs. Its heavy-duty construction ensures durability and reliability, while its adjustable arm angle allows for additional storage space when folded.

This Harmar lift is easy to use, thanks to its fully powered loading and unloading mechanism, and bolts securely into the floor of the cargo area or trunk. Whether you have a heavy-duty power wheelchair or need additional storage space, the AL425HD Axis II Inside Vehicle Lift has you covered.


 Harmar AL425HD Axis II Lifting Power Chair View


The AL425HD boasts a built-in offset post that enables loading of power chairs from the side of the vehicle, adding to the lift's convenience. Weighing only 70 lbs, it won't compromise the vehicle's weight or gas mileage as much as heavier lifts on the market.

The boom arm's length and height adjustability provides better clearance and positioning for the power wheelchair. It comes with a docking device, a weather-resistant hand control, and a best-in-class, 3-year transferable warranty. With these features, the AL425HD is a reliable and efficient solution for heavy-duty power chair lifting.

Installing lifts that bolt to the floor or are wired to a vehicle's battery can be difficult for those who are not mechanically inclined. If you require assistance with the installation process, there is an option to select professional installation services. This ensures that your lift is installed correctly and functions optimally.

 Harmar AL425HD Axis II Back of Truck View

AL425HD Axis II Benefits & Features:

  • Ideal for pick up trucks and full size vans
  • Heavy duty construction and stronger components to lift fully-equipped power wheelchairs

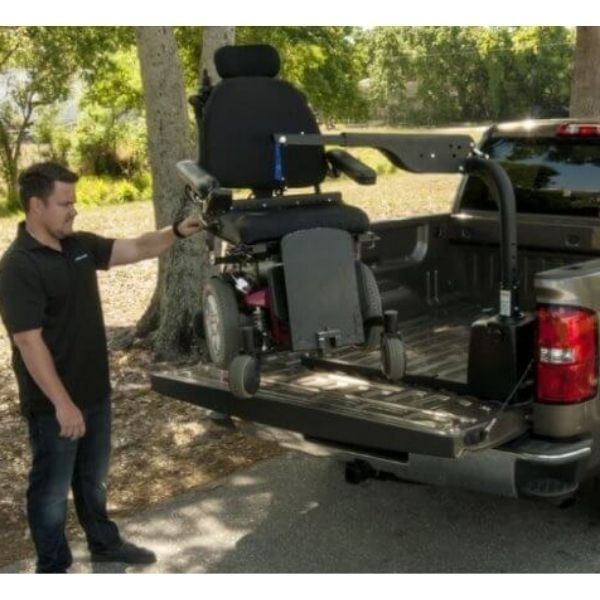

  • Weather-resistant hand control included; optional wireless remote control available
  • Load/unload mobility device conveniently from side of vehicle

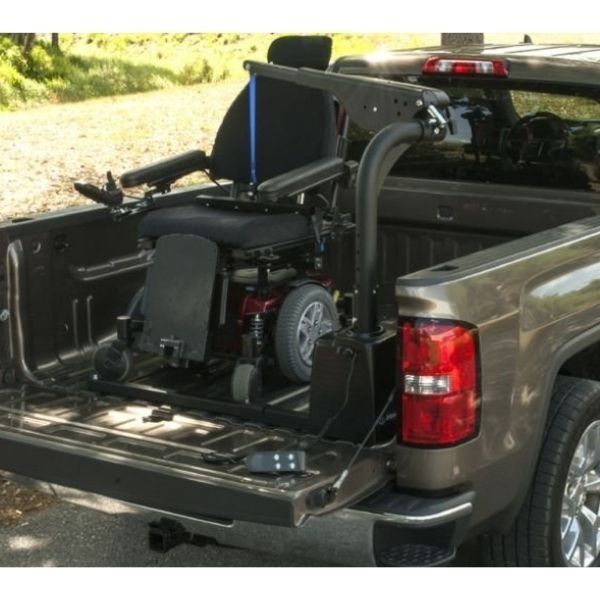

  • Adjustable base adapters for faster installation


Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.


Harmar AL425HD Axis II Owner's Manual

Harmar AL425HD Axis II Product Brochure



Adjustable Boom Height: 31.5" to 46.5"
Adjustable Boom Length: 26.25" to 33.5"
Power Source Hardwired
Adjustable Boom Pitch: 0 ° to 15 °
Professional Install Available: Yes
Operation: Power
Lifting Capacity: 450 lbs
Recommended For: Heavy Duty Power Wheelchairs
Installed Product Weight: 70 lbs.
Type of Lift: Inside Lift
Warranty - Transferable Warranty Yes
Product Weight: 70 lbs.


Warranty Information for the AL425HD Axis II


Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.

This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
