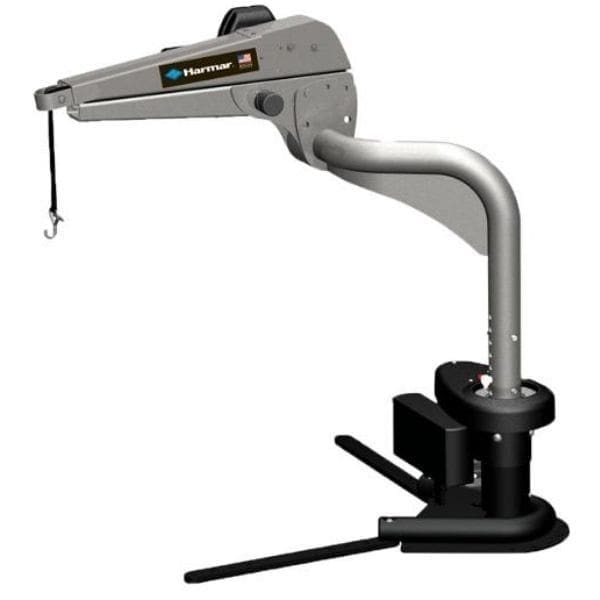

AL435T Tailgater 3-Axis Truck Lift by Harmar
The AL435T Tailgater is an excellent power lift for trucks that enables safe lifting of mobility scooters or power wheelchairs into the truck bed without causing damage to the vehicle or mobility aid. Its adjustable limit switches automatically stop rotation if the device gets too close to the vehicle.

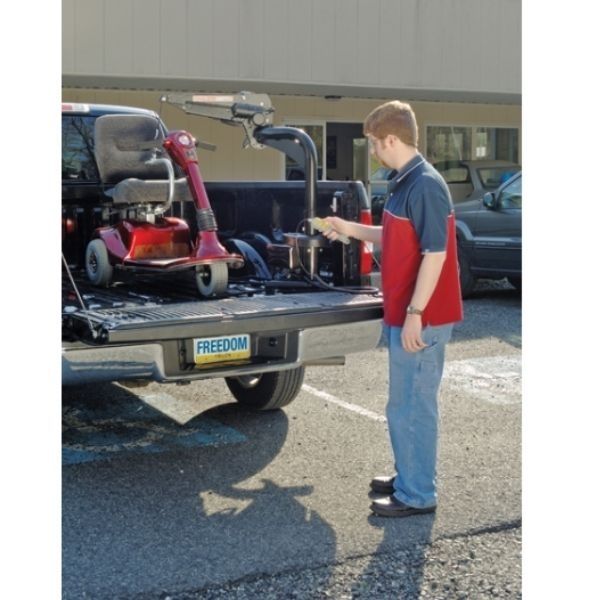

This Harmar lift operates quietly and has weatherized electronics to withstand unfavorable weather conditions. The user can effortlessly lift their mobility aid from the bed of the truck over the lowered tailgate and place it directly behind or beside the vehicle. The AL435T Tailgater offers convenience, safety, and ease of use for truck owners with mobility aids.
WHAT YOU SHOULD KNOW WHEN ORDERING:
Professional installation for the lift involves a hardwire installation directly to the vehicle battery, and this process is included in the lift's package. The hardwire harness is not an additional item. You may opt to do the installation yourself, or for an additional fee, we offer professional assembly services.
AL435T Benefits & Features:
- Ideal for Pick-up trucks where a power wheelchair or scooter need to be loaded/unloaded from either curb side or beyond lowered tailgate
- Same design as AL435 with upgraded offset arm to extend reach beyond lowered tailgate
- Weather resistant for exterior environments
- Docking device included
- Available for passenger side only
Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.
| Adjustable Boom Height: |
34" to 42" |
| Power Source: |
Battery Hardwired |
| Professional Install Available |
No |
| Arm Angle Adjustment: |
5 Degree Increments from Horizontal to 35 Degrees" |
| Service Contract Available |
No |
| Base Leg Adjustment: |
180 degree Total Adjustment 45 degree minimum Leg Bar Spread" |
| Operation |
Power |
| Boom Adjustment Range |
24.5" to 36.5" |
| Lifting Capacity: |
400 lbs |
| Recommended For: |
Travel Scooters Full Sized Scooters Full-Size Power Wheelchairs |
| Column Rotation: |
180 degrees adjustable at +/- 20 degree increments |
| Installed Product Weight: |
125 lbs |
| Box 1 |
|
| Shipping Weight: |
130.00 lbs. |
| Length: |
40.00" |
| Width: |
21.00" |
| Height: |
18.00" |
Warranty Information for the AL435T Tailgater 3-Axis Truck Lift
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
