Harmar AL500 Platform Power Wheelchair Lift

✓ Ships in 1-3 Business Days
✓ Warranty Included

AL500 Platform Power Wheelchair Lift by Harmar

The AL500 Power Wheelchair Lift is a top-rated lift, capable of supporting up to 350 lbs of weight, and is compatible with a wide range of vehicles and power chairs. One of the main reasons for its popularity is that it requires no modifications to the power chair, making it a convenient option.

The lift is compatible with Class II and Class III hitches and comes with four self-tensioning, quick-release straps for securing the power chair in place. Its durability, features, and functionality make it a reliable option for transporting power chairs without any hassle or added expenses.

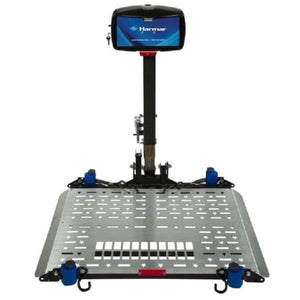

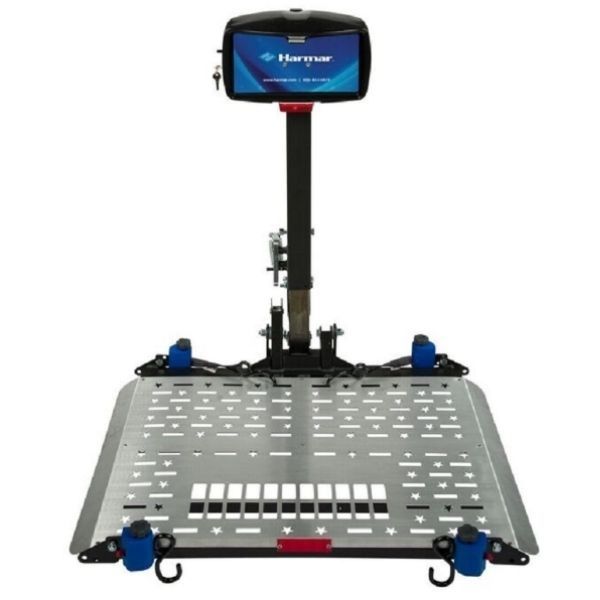

 Harmar AL500 Front View

Great Adaptibility:

The Harmar lift is incredibly versatile, accommodating power wheelchairs of any size, thanks to its large oversized deck. Its one-switch operation makes it simple to use, while a manual crank acts as a backup if the power source fails. The lift is highly adaptable and securely holds your power wheelchair in place for easy transportation. When not in use, the large aluminum deck folds against the back of the vehicle, allowing for easy garage entry. The lift extends only 12" behind the bumper when unloaded and in the folded position. The Swing-Away option, compatible with a Class III hitch, provides trunk or lift gate access and adds just 2" of length when folded.

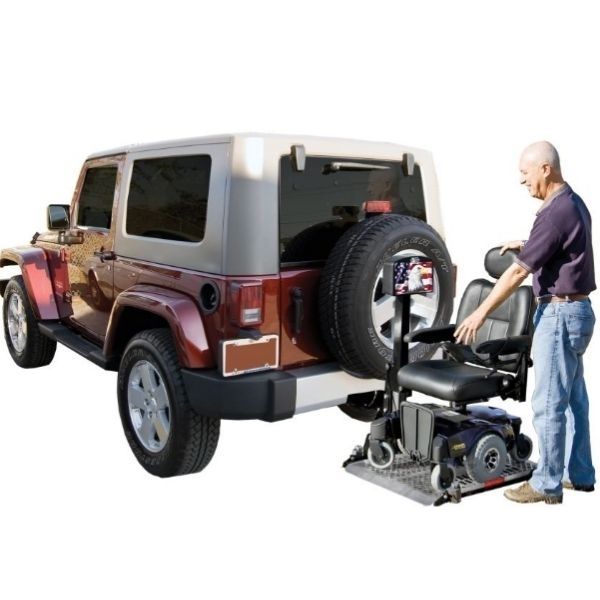

Harmar AL500 Wheelchair on Lift

Highly Secure:

The lift is equipped with automatic retractors that are capable of securely fastening almost any power chair in place. These retractors can be attached to your chair in two ways. The first method employs a spreader bar that slides between the seat and seat post and includes provisions for the retractors. Alternatively, metal loops attach to the chair's frame if there is no seat post. Both methods add minimal weight to the chair and have undergone extensive testing to ensure total security. The retractors can be removed without causing damage to the chair.

Note: It's important to note that in several states, such as CA, AZ, NV, CO, UT, ND, SD, OR, WA, ID, MT, WY, HI, AK, FL, TX, and AL, it is mandatory to display your license plate on the exterior of your lift. It's possible that this requirement exists in other states as well, so it's your responsibility to understand the regulations in your state.


AL500 Benefits & Features:

  • Carries virtually all power chairs
  • 4–Self-tensioning Q’Straint retractors
  • Folds automatically when empty
  • No power chair modifications
  • Manual back-up
  • License plate mount
  • Swing-Away option available
  • Made in the USA

Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.




Hitch Height: 5" to 18"
Power Source: Battery Hardwired
Works With Hitch Size: Class II Hitch Class III Hitch
Professional Install Available: Yes
Service Contract Available: No
Operation: Power
Lifting Capacity 400 lbs.
Recommended For: Full-Size Power Wheelchairs
Platform Size - Length 39 in
Platform Size - Width: 27.5 in.
Installed Product Weight: 77 lbs
Type of Lift: Outside Lift
Warranty: 3 Year Limited Warranty
Warranty - Transferable Warranty Yes
Product Weight: 75 lbs.
Box 1
Shipping Weight: 150.00 lbs.
Length: 42.00"
Width: 41.00"
Height 13.00"

Warranty Information for the AL500 Platform Power Wheelchair


Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.

This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
