Harmar AL500HD Heavy Duty Universal Electric Wheelchair Lift

✓ Ships in 1-3 Business Days
✓ Warranty Included

 AL500HD Heavy Duty Universal Electric Wheelchair Lift by Harmar

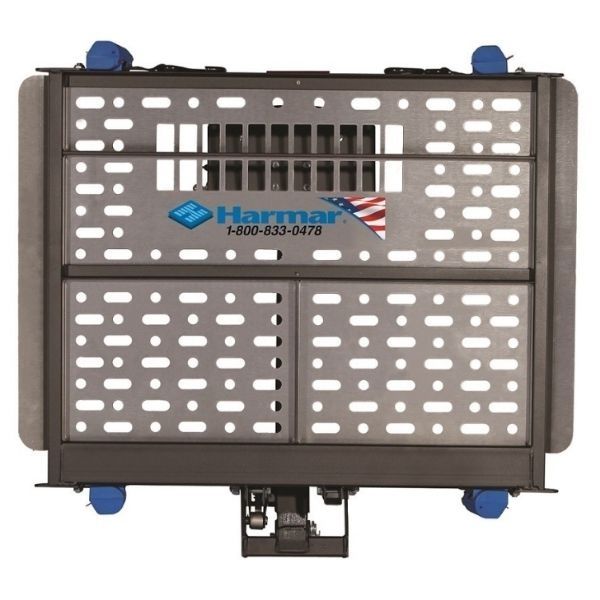

     Harmar AL500HD Folded Up Lift


    The AL500HD Heavy Duty Power Wheelchair lift is a versatile and durable option for transporting power chairs up to 400 lbs. Equipped with four self-tensioning retractors, it is easy to secure your mobility aid without the need for any modifications. This lift by Harmar is lightweight at only 77 lbs, making installation a breeze. It also offers a manual backup system for added security. The universal design ensures compatibility with a wide range of power chairs, while its simple operation and durable construction ensure years of trouble-free use.

    Harmar AL500HD Front View


    AL500HD Heavy Duty Benefits & Features:

    • Carries virtually all power chairs

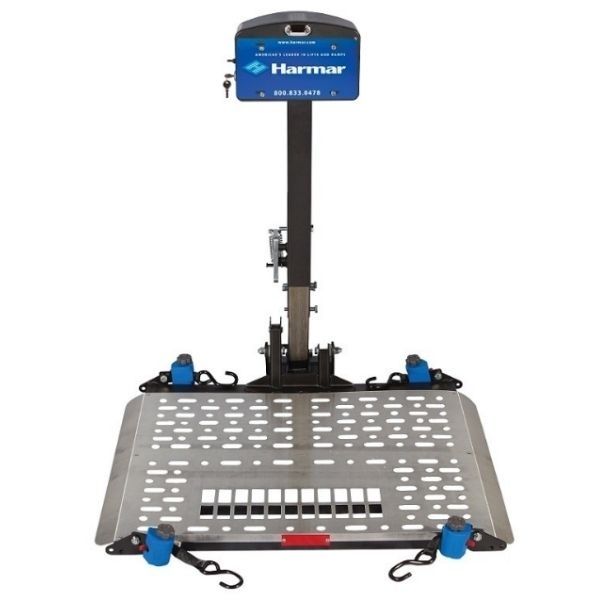

    • 4-Self-tensioning, Q'Straint retractors

    • No power chair modifications

    • Manual back-up

    • License plate mount

    • Swing-Away option available

    • Made in the USA


    Important Note: Additional Parts May Be Required
    Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.



    Hitch Height: 5" to 18"
    Power Source: Battery Hardwired
    Works With Hitch Size: Class II Hitch Class III Hitch
    Professional Install Available: Yes
    Service Contract Available: No
    Operation: Power
    Lifting Capacity 400 lbs.
    Recommended For: Full-Size Power Wheelchairs
    Platform Size - Length 39 in
    Platform Size - Width: 27.5 in.
    Installed Product Weight: 77 lbs
    Type of Lift: Outside Lift
    Warranty: 3 Year Limited Warranty
    Warranty - Transferable Warranty Yes
    Product Weight: 75 lbs.
    Box 1
    Shipping Weight: 150.00 lbs.
    Length: 42.00"
    Width: 41.00"
    Height 13.00"

    Warranty Information for the AL500HD Heavy Duty Universal Electric Wheelchair Lift


    Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.

    This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
