AL570XL XL Outside Lift For Power Chairs by Harmar

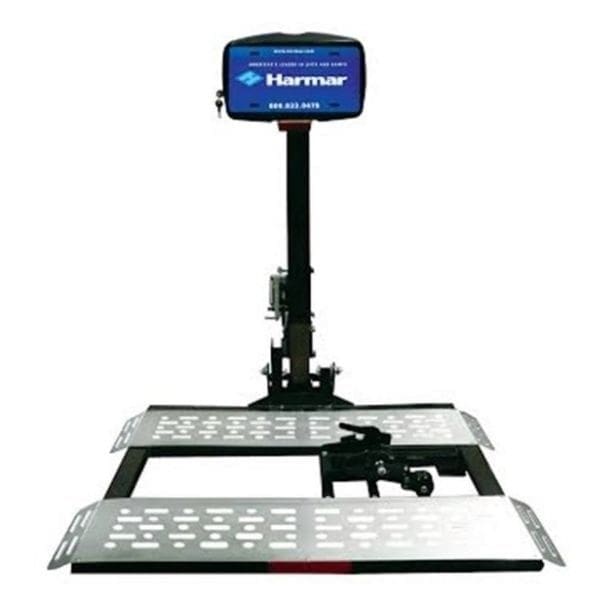

The AL570XL Outside Lift by Harmar is a power chair vehicle lift that is great for lifting and holding heavier power wheelchairs. It was designed with a "Dock ‘N’ Lock" system. This automatically secures your power chair to the platform using a lock docking device that is capable of lifting as much as 350 lbs making it one of the more powerful outdoor lifts available on the market.
Equipped with a large 35" x 35" platform, that is also adjustable, the this Harmar vehicle lift can accommodate most power chairs easily. This lift also weighs just 79 lbs, making it very simple to install making it one of the more desirable lifts on the market.
AL570XL XL Outside Benefits & Features:
- Dock ‘N’ Lock Auto Secures the power chair to the platform using a positive lock docking device
- Automatic tilt for added ground clearance and weight transfer
- Lighted license plate bracket and courtesy lights illuminate lift and truck areas

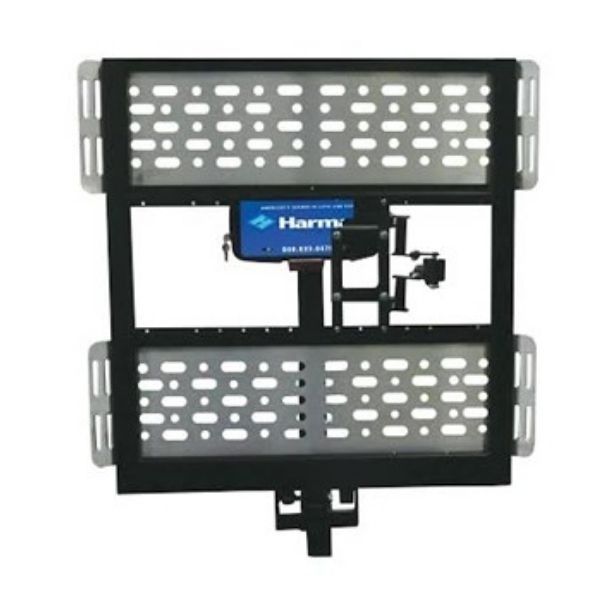

- Weight sensitive platform automatically folds when lifted without power chair
- Adjusts to accommodate a wide range of power chairs.
- Compatible with class II or III hitch models
- Powered by your vehicles battery
- Swing-away option available
Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.
| Hitch Height: |
5" to 18" |
| Power Source: |
Hardwired |
| Works With Hitch Size: |
Class II Hitch Class III Hitch |
| Professional Install Available: |
Yes |
| Operation |
Power |
| Lifting Capacity |
350 lbs. |
| Recommended For: |
Full-Size Power Wheelchairs |
| Platform Size - Length |
36 in. |
| Platform Size - Width: |
39 in |
| Warranty: |
3 Year Limited Warranty |
| Warranty - Transferable Warranty |
Yes |
| Product Weight: |
79 lbs |
Warranty Information for the AL570XL Outside Lift For Power Chairs
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
