Harmar AL580 Next Generation Power Chair Lift

✓ Ships in 1-3 Business Days
✓ Warranty Included

AL580 Next Generation Power Chair Lift by Harmar

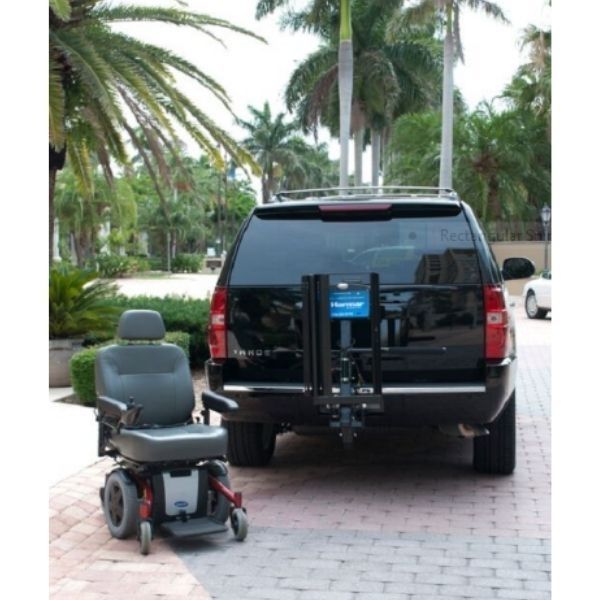

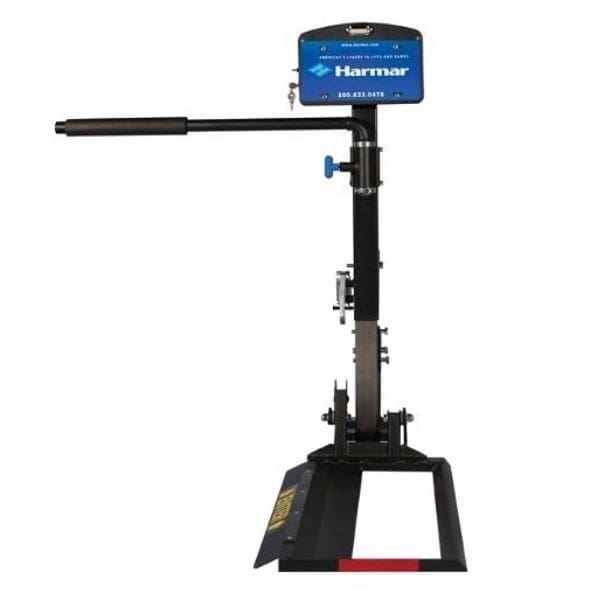

Harmar AL580 Front View


The AL580 Power Chair Lift by Harmar is a hassle-free solution for transporting your power wheelchair. This lift has a padded arm that securely holds your mobility aid, eliminating the need for straps or tie-downs. It folds up automatically when not in use, and there is a manual crank and license plate mount for added convenience. Your power wheelchair doesn't require any modifications to use this lift, and it's compatible with Mid-Wheel Drive Power Chairs that have 10" drive wheels. This lift is designed for vehicles with a Class II or Class III Hitch, making it a versatile and reliable choice.

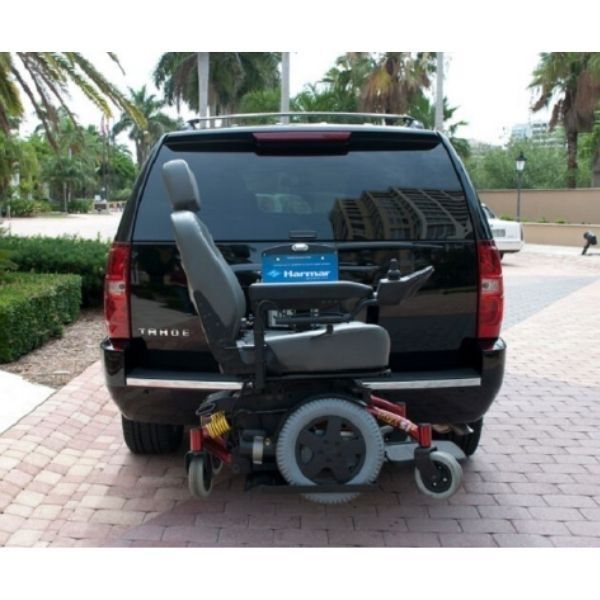

Harmar AL580 Power Chair on Lift View

The Harmar lift possesses a sleek design that minimizes its profile at the rear of your vehicle, ensuring it doesn't take up much space or obstruct your rear view. As a result, transporting your power chair becomes a comfortable, secure, and effortless experience.


If you opt for professional installation of your lift, choosing the battery pack option is mandatory. Even if you don't go for professional installation, it's still advisable to select the battery pack. The hardwire kit connects the lift to the car battery, but installing it can be challenging if you lack mechanical expertise. On the other hand, the battery pack lets you set up the lift with an external battery system, but you'll need to recharge it frequently. Additionally, some states, including CA, AZ, NV, CO, UT, ND, SD, OR, WA, ID, MT, WY, HI, AK, FL, TX, and AL, require displaying the license plate on the lift's exterior. It's your responsibility to comply with your state's laws.

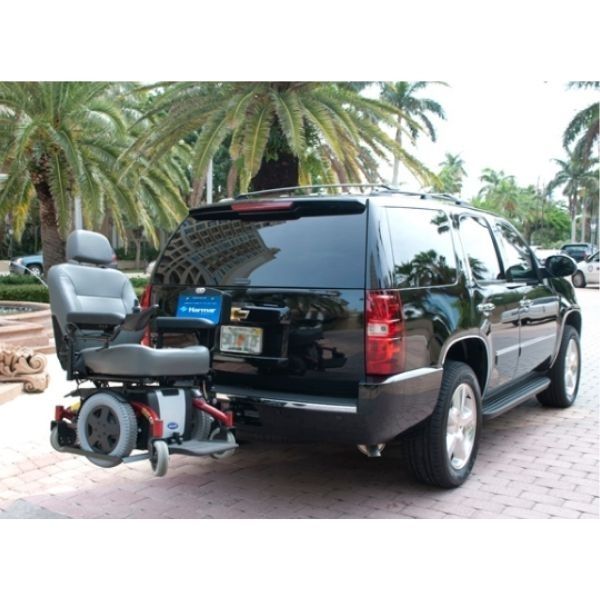

Harmar AL580 Next Power Chair on Lift View

AL580 Next Generation Benefits & Features:

  • One switch operation
  • Compatible with Invacare TDX Series
  • Padded hold-down arm conveniently secures power wheelchair
  • No Power wheelchair modifications required

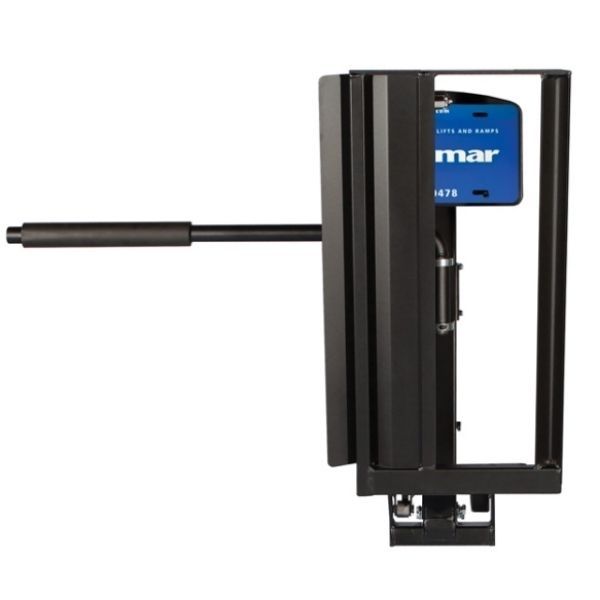

  • Lift folds automatically when unoccupied
  • No straps or tie-downs required
  • Manual crank backup & license plate mount included
  • Harmar Blue Torch Technology
  • Swing Away option available


Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.



Battery Pack Option Yes
Hitch Height: 5" to 24"
Power Source: Battey Hardwired
Works With Hitch Size: Class II Hitch Class III Hitch
Professional Install Available: Yes
Service Contract Available: No
Operation: Power
Lifting Capacity 350 lbs.
Recommended For: Full-Size Power Wheelchairs
Platform Size - Length 27 in.
Platform Size - Width: 16.5 in.
Warranty: 3 Year Limited Warranty
Warranty - Transferable Warranty Yes
Product Weight: 83 lbs


Warranty Information for the AL580 Next Generation Power Chair Lift


Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.

This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
