Merits Health P710 Atlantis Power Wheelchair

✓ Fast & Free US Shipping
✓ Ships in 1-3 Business Days
✓ Warranty Included
Free gift banner

P710 Atlantis Heavy Duty Power Chair by Merits Health Products.

Everlasting Mobility Free 1 Year In Home Service Contract

Are you looking for a highly durable rear-wheel drive power wheelchair that is designed like a tank yet still provides excellent stability and comfort?  Take a look at the Merits P710 Atlantis Power Chair.  This power chair combines exceptional power and stability with an unrivaled hauling capacity.  The Atlantis is as rugged as they come, with a top-of-the-line weight capacity of 600 lbs.


Power chairs have become a vital part of everyday life for many people, Did we mention how tough this power chair is?  When you consider the P710's incredible battery range of 32 miles and highest speed of 5 mph, it's easy to understand why it's at the top of its class.  This is made possible by its very high-power twin inline motors. They can comfortably tackle inclination slopes of up to 10 degrees.

Merits P710 Atlantis Large Tire View


The Atlantis power wheelchair is designed for users who require proper positioning and support.  With a 24" extra wide seat and an extra high seat back, the Atlantis is sure to provide comfort to just about any body type.  Adjusting the seat's ability to recline is simple with the lever on the side of the seat, so you may lean the seat back for comfort or tilt the seat forward for storage or transport.

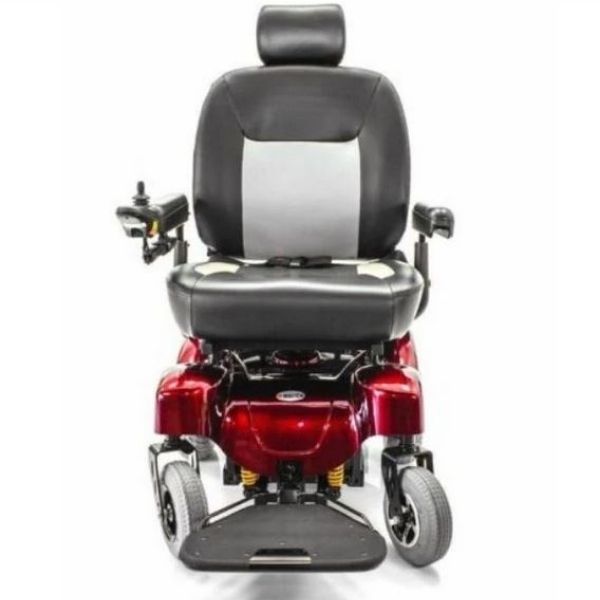

Merits P710 Atlantis Front View



The armrests on this set may also be flipped up for convenient access.  They can also be adjusted horizontally and vertically to meet the demands of the rider for best comfort.  An extra wide flip up foot plate with a handle hole is included with this heavy-duty electric chair.  Its height and extension may be adjusted to fit the needs of various users.

Merits P710 Atlantis Heavy Duty Electric Power Wheelchair Flip Up Armrests

Merits P710 Atlantis Heavy Duty Electric Power Wheelchair Adjustable Armrests


The motors on this chair include an innovative braking mechanism that prevent undesired rolling when the chair is stationary using electromagnetic technology. They're also regenerative, which means they recuperate the kinetic energy lost during braking and re-inject it into the batteries.  This increases the power chair's range of motion and efficiency.

Merits P710 Atlantis Heavy Duty Electric Power Wheelchair Intelligent Braking System


When it comes to power wheelchair control, the Atlantis takes center stage.  Its PG VR2 controller is packed with features yet small enough to wield easily.  This controls the power chair's horn, speed, and movement, is included with the Atlantis. It also shows the current battery charge, so you know how long you can ride at all times. The controller has a built in charging port that is easily accessible.  The swing away joystick is also included as standard.

Merits P710 Atlantis Heavy Duty Electric Power Wheelchair Joystick View

Merits P710 Atlantis Heavy Duty Electric Power Wheelchair Charging Port View


The P710 boasts a highly upgraded suspension system that improves the P710's stability even further. It also contributes to a seamless and comfortable ride for the user, whether indoors and out. The P710 is equipped with a standard seatbelt and reflectors for further safety.

Merits P710 Atlantis Unique Suspension System

This chair has been in production for more than 15 years, so you know it's a favorite among customers. When you combine it with Merits Health Products engineering and technical support team, you can be certain that you have one of the greatest heavy-duty power chairs available today.

Merits P710 Benefits & Features:

  • Weight capacity: 600lbs
  •  Super heavy-duty power wheelchair with unique and prominent design
  •  Four seat posts provide more stable and a durable structure for the frame
  •  Extra-wide seat and extra-high back provide great comfort for bariatric users
  •  Super high power in-line motors help riders negotiate 10° uphill ramps easily
  •  Colors available: Red, Blue
  •  Optional accessories: Elevating legrest, oxygen tank holder, can & crutch holder, walker holder, foldable rear basket and canopy, height adjustable arms, swing away joystick


          Merits Atlantis P710 Dimensions

          Seat Width 24"
          Seat Depth 20"
          Seat Height 23"-24"
          Armrest Height
          Backrest Height 22"
          Min. Footrest Extension
          Max. Footrest Extension
          Overall Length 44"
          Overall Height 50"
          Overall Width 27"
          Folded Width
          Total Weight 304lbs
          Capacity 600lbs

          P710 Technical Specifications

          Max Speed 5mph
          Range up to 32 miles
          Turning Radius 31.5"
          Ground Clearance 3"
          Motor DC 24V, 300W
          Controller Dynamic Shark 60A/PG VR2 60A
          Battery 12V/Group 24 x 2pcs
          Charger 6A off-board
          Gradient 10°
          Casters 9" pnuematic tires
          Drive Wheels 12" pnuematic tires
          Brakes intelligent, regenerative, electromagnetic




          • Warranty Frame 5 year / Limited Lifetime

          • Electronics 1 year

          • Motor/Brakes 1 year

          • Batteries 1 year
