Merits P301 Gemini Heavy Duty Electric Wheelchair

✓ Fast & Free US Shipping
✓ Ships in 1-3 Business Days
✓ Warranty Included
Free gift banner

P301 Gemini Power Wheelchair by Merits Health Products

Everlasting Mobility Free 1 Year In Home Service Contract


Are you searching for a powerful rear-wheel drive power chair with a large weight capacity and a long battery range?  Well, you have found it!  The Merits P301 Gemini is a high-performance power wheelchair that is considered one of the best on the market today.  There are other advantages and characteristics that distinguish the chair, which we shall discuss in more detail later.



This chair comes equipped with a weight capacity of 450 lbs, which is one of the greatest weight capabilities available on the market.  The Gemini may also be ordered with an elevating seat, which can raise and lower the seat by up to 10".  If you choose the elevating seat option, the weight capacity is reduced to 350 lbs.  The P301 normal seat size is 22" x 22" and does rotate to the side, tilt back, and fold down.

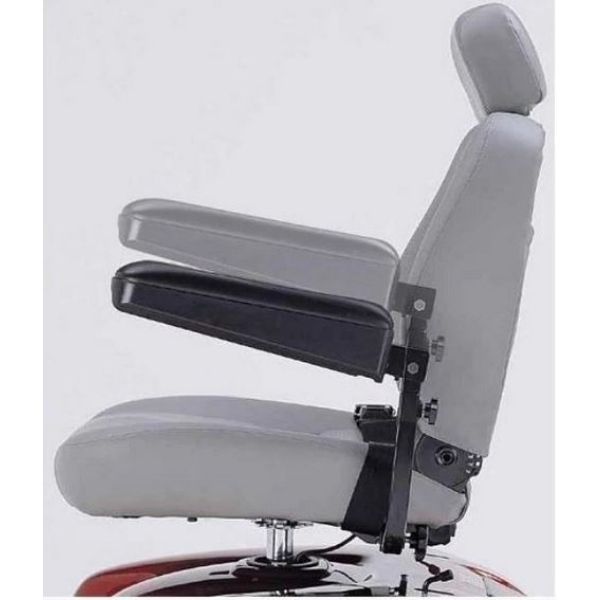

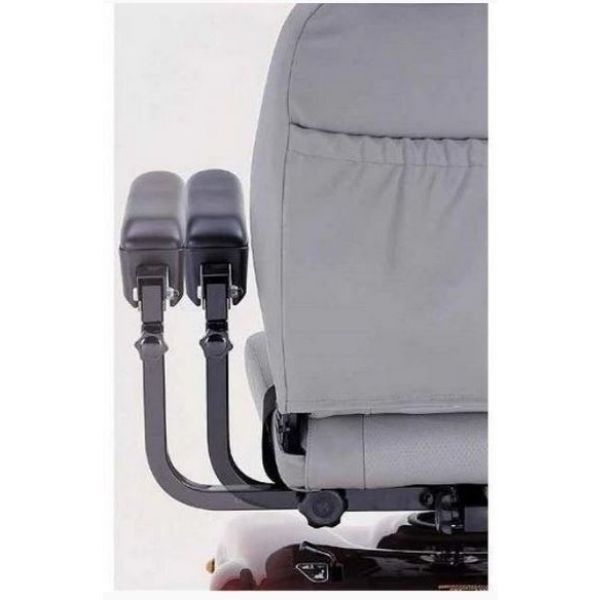

This is useful whether you're seated at a table, want to lie back to take a nap, or need to move or store the unit in a small space.  A swivel seat is uncommon in a power chair with this much weight capability.  The armrests do fold up and may be moved outward to provide the user with greater seating space.

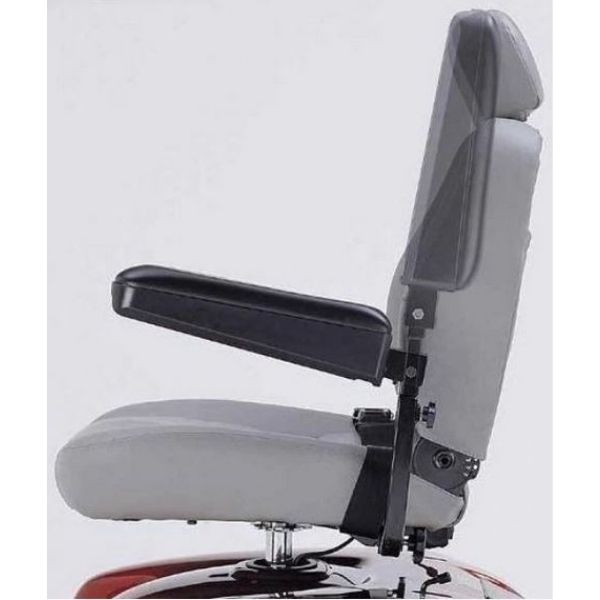

Merits Health P301 Gemini Tilt Seat Back



This power chair is powered by 50AH batteries. They have enough power to provide the user with a battery range of 20 miles per charge.  This may be somewhat less depending on the user's weight and the kind of terrain they are traveling on.  To charge the device, just connect the charger to the joystick, eliminating the need to kneel or bend down.  When the chair is fully charged, the charger automatically turns off, so there is no need to worry about overcharging the device.

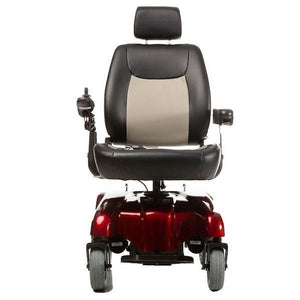

Merits Health P301 Gemini Front View

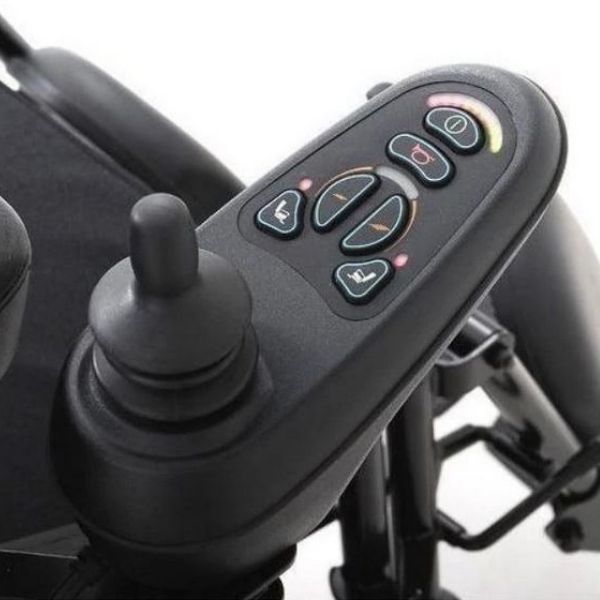

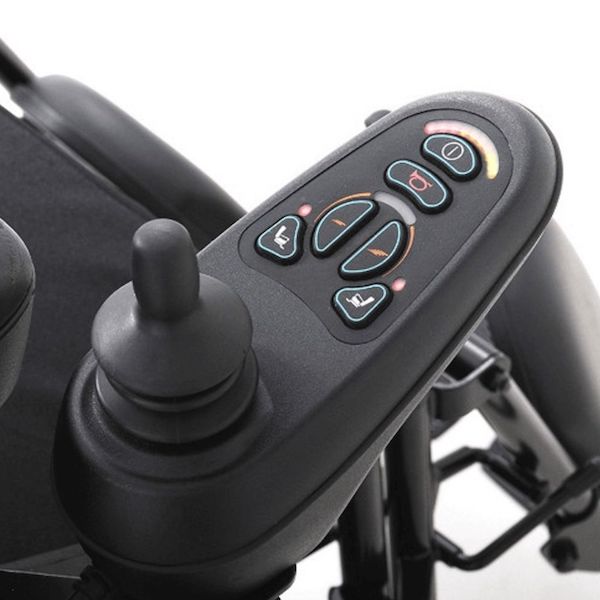

Merits Health P301 Gemini Joystick View



The majority of motorized wheelchairs have a peak speed of 4 mph.  The Gemini, on the other hand, has a top speed of 5 mph, which is slightly quicker than what you would anticipate from a power chair of this size.



This is a really great power chair that we strongly recommend if you are searching for a power chair with a high weight capacity, adjustable arms, swing away joystick,  a seat belt, flip up armrests, and flip up foot plate. It is suitable for both indoor and outdoor use, so it may be used in a variety of settings.

Furthermore, Merits Health Products is a renowned brand in the mobility sector with over 30 years of expertise.  They have some of the best designs and a top of the line engineering team in the industry, which is easy to see once you see one of these products in person.


  • Weight capacity: 450 lbs.
  • The unique suspension system and high-density foam seat provide a smooth and comfortable ride
  • The sophisticated controller coupled with 14" aluminum cast drive wheels offer excellent maneuverability
  • Comfortable 22" (20" with seat elevator) wide captain seat has swivel and folding capabilities with adjustable head and backrest
  • Aluminum footplate with flip-up height and angle adjustability provides various comfort positions
  • Programmable controller with a wide range of selections to suit the needs and demands of different users
  • The non-programmable controller also available

Why you should consider buying the Merits Health Gemini Heavy Duty Wheelchair

We love the Gemini wheelchair's unique suspension system and the long-lasting rechargeable battery. The ability to move around with ease with its great turning radius is also one of our favorite features. The ability to add a power elevating seat as an option makes this one of the best heavy-duty wheelchairs on the market.

Merits P301 Gemini Order Details

You'll know that you are getting the Gemini Power Wheelchair at the lowest price anywhere, thanks to Everlasting Mobility's Price Match Guarantee and no sales tax! With FREE shipping and financing available, you can enjoy the Merits Health Wheelchair right away!


Merits P301 Gemini Specifications

Gemini with Seat Lift Gemini
Seat Width 20" 22"
Seat Depth 20" 22"
Seat Height 24"-29" 22"-24"
Backrest Height 20" 22"
Overall Length 41" 41"
Overall Height 45" 45"
Overall Width 24" 24"
Total Weight 350 lbs. 242 lbs.
Capacity 350 lbs. 450 lbs.


Technical Specifications

Max Speed 5 mph
Range up to 20 miles
Turning Radius 21"
Ground Clearance 4"
Motor DC 24V, 240W
Controller Dynamic Shark 60A/PG VR2 60A
Battery 12V/22NF(50AH) x 2pcs
Charger 5A off-board
Gradient 10°
Casters 9" foam filled tires
Drive Wheels 14" foam filled tires
Brakes intelligent, regenerative, electromagnetic


Warranty Information for the Gemini

Power Chair Warranty – Lifetime Limited

Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).

For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.

Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
